Occupancy Monitor Setup Guide

Setup: AOI/Layout/Venue & Device

AOI:

• Include as many gates as necessary for the occupancy monitor. Ensure that the data sources added are Traffic (InReality)
• Add at least 1 endpoint (digital signage, this will display occupancy count). Add as many endpoints as required (if the customer wants to display the same occupancy display across several devices)

Layout:

• Include at least one Master Controller and assign the cameras/gates to the Master Controller. Assign the digital signage endpoint to the Master Controller, unless specified otherwise by the client (in the case that the Master Controller will not be displaying the Occupancy presentation). If multiple computers are displaying the Occupancy presentation, add the applicable number of sensor controllers and assign the digital signage endpoints to them.

Venue:

• Assign the device using the cameras as the Master Controller, and all of the other devices displaying the occupancy presentation as sensor controllers (if they exist).
• Obtain Serial ID command: sudo lsusb -v | grep iSerial

Rules Setup

Conditions:

1. Select AOI = AOI that the occupancy monitor is using
2. Datasource: The gate used by the occupancy monitor (need to create 2 rules for every gate used by the occupancy monitor: an increasing count, and a decreasing count)

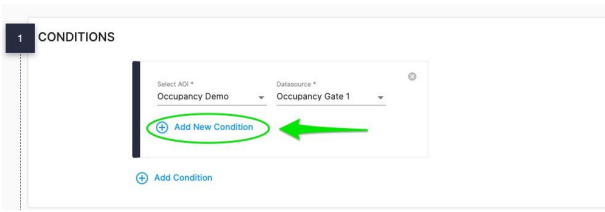

3. Select +Add New Condition
4. Data Point = Type
5. Operator = “=”
6. Value = Enter for increasing count, Exit for decreasing count (need to set up 1 rule for both)

Actions:

1. First  Action:
   • Select AOI = STATUS
   • Variable = OCCUPANCY_Store Occupancy
   • Operator = Increase or Decrease (depending on Rule)
2. Second Action: Same for all rules
   • Select AOI = STATUS
   • Variable = OCCUPANCY_THRESHOLD_Store Occupancy
   • Operator = CONST d. Value = 5 (or whatever threshold value the customer desires)

Select “Publish Rule”, select the Occupancy Venue which utilizes them, then Publish.

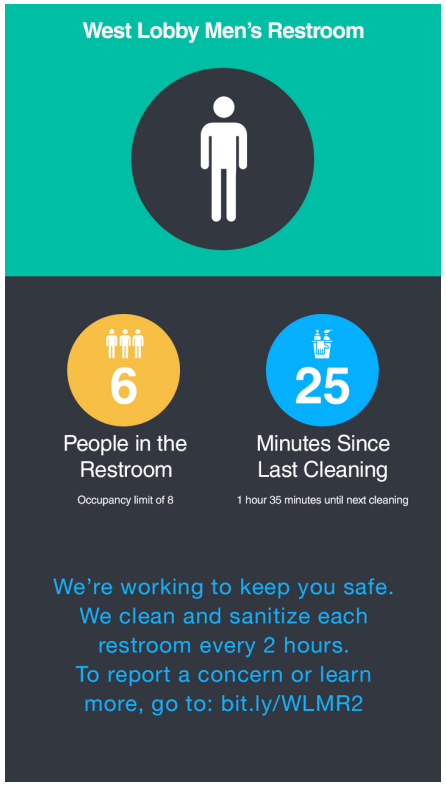

Presentation Setup

Example:

Download Occupancy HTML5 Presentation: https://drive.google.com/file/d/18kru7LTrUjgHYeGvByxXupiSK6RriHLj/view?usp=sharing

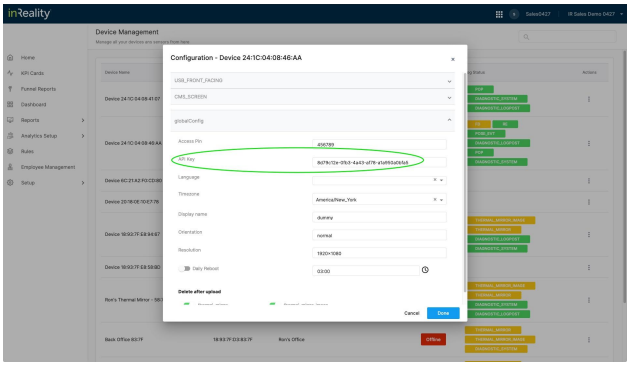

Unzip, then edit scripts/config.js to reflect the IP of the Master Controller (keep as “localhost” if the presentation will only be played on the Master Controller, change to the static IP of the Master Controller if playing on a different device) and its api key, which can be found in the globalConfig settings (Devices page found in Bento menu):

Then zip the contents and upload to the CMS (need to zip the contents from within the folder). Create a new presentation and add the HTML5 content. Resize the content to fit the screen, and then save and exit the presentation. Create a new campaign for the occupancy monitor display(s), include all of the relevant devices, select the Occupancy presentation, then publish.

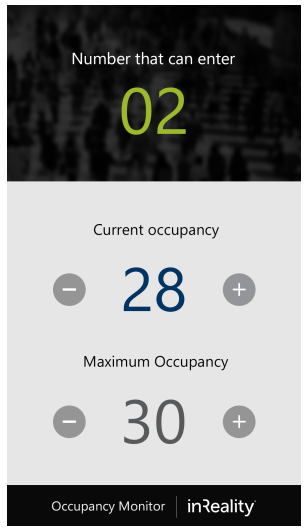

Occupancy Manager - Mobile Web App

Control monitor settings from a tablet or phone

• URL - http://<Edge_Device_IP>:8964
• Password 456789
• URL - http://192.168.68.156:8964

Example:

HTML5 Widget: Prepare Occupancy Monitor Widget

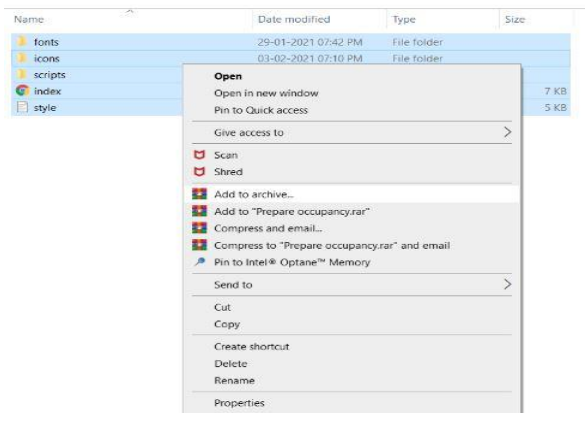

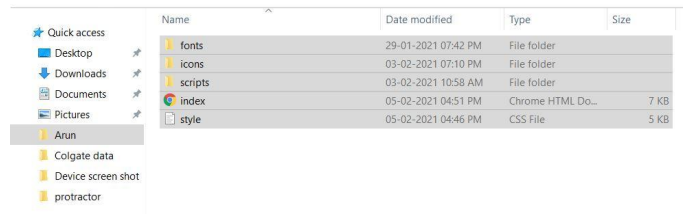

Step 1: Select all files

Step 2: Right-click and select Add to archive

Note: Do not put the above files in a folder and archive the folder. In that case the widget will not work and you won't be able to upload the widget to CMS.

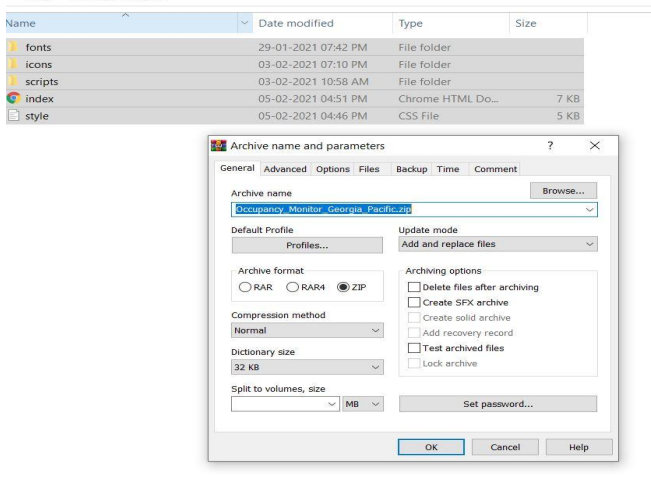

Step 3: Enter the .zip filename and select Archive format ZIP

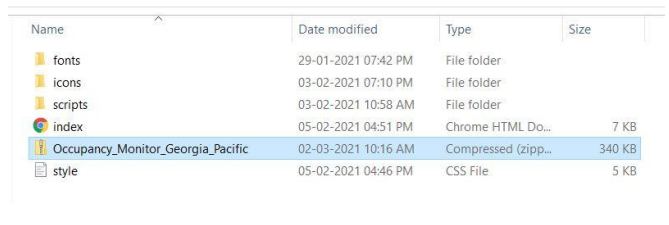

Step 4: Zip file created

Application Versions

• Rules Engine: rules-engine_1.1.0-6.cpk
• AVA: python-ava_Ubuntu_x64_2.4.0_r.cpk
• RCE: linux-dsp-player_U16.04-x64_4.1.2.sprint-JULY_RULE.cpk
